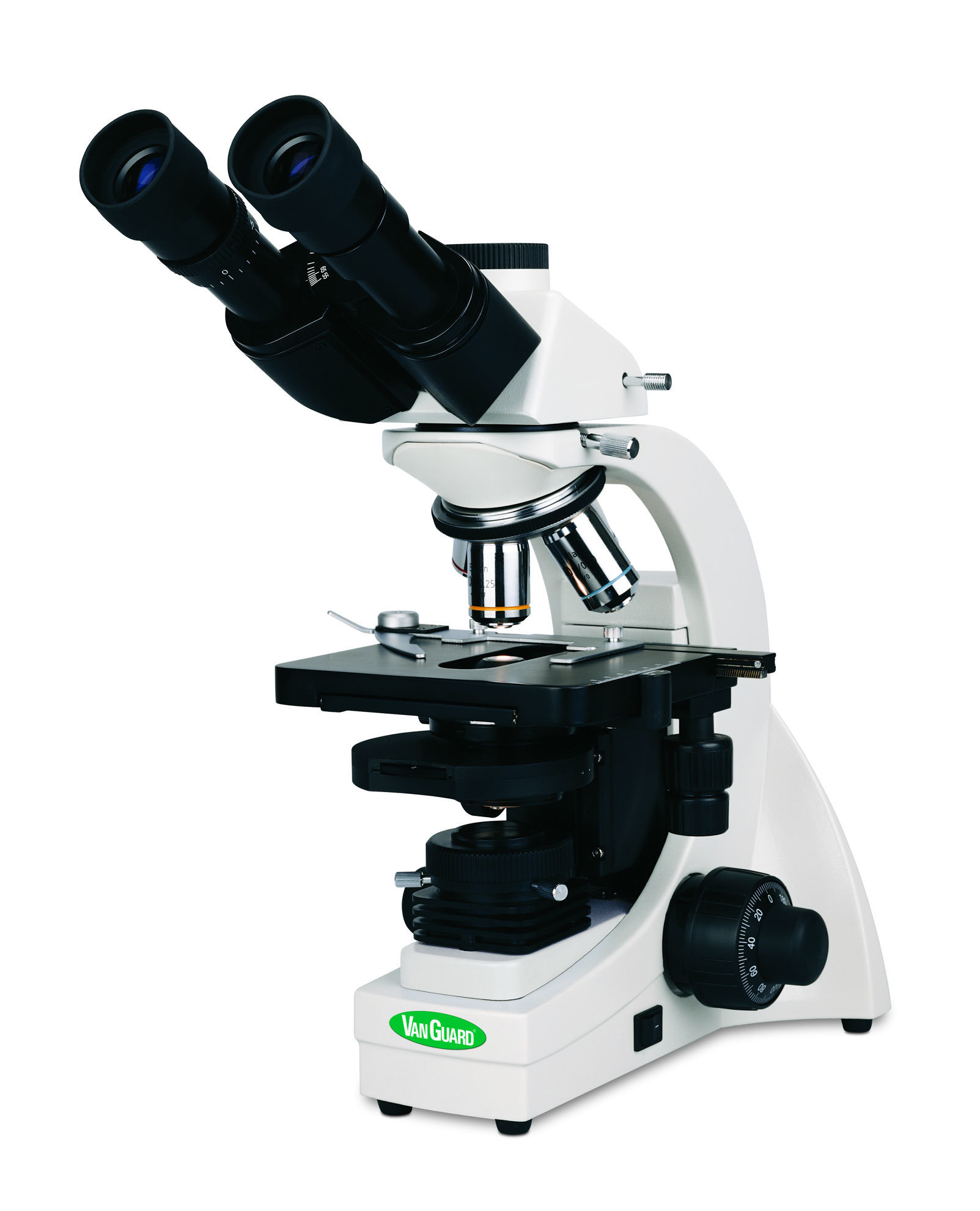

VanGuard® 1300 Series Compound Microscopes - 1333PHi

$3,150.00

VanGuard® 1300 Series Compound Microscopes have vivid, infinity-corrected optics and offer exceptionally high optical flatness and visual clarity. Ultra-low focusing controls and advanced ergonomics make them an excellent match for use in medical/veterinary clinics, universities, and industrial laboratories.

  • Phase contrast/darkfield/brightfield
  • VIOS infinity-corrected optics
  • 20W variable quartz halogen illumination
  • Integrated Koehler illumination
  • Advanced ergonomics
  • Small footprint
  • High-eyepoint eyepieces (FD 20mm) w/rubber eyecups
  • 160 x 140 mm stage
  • 5 year warranty

Choose from binocular or trinocular viewing heads. Various camera packages are available as options.

All models feature 10X High-Eyepoint WideField eyepieces, 20W variable quartz halogen illumination, field diaphragms for Koehler illuminations, and are backed by a 5 year warranty.

  • Fixed 160mm or VIOS infinity-corrected optical system
  • Viewing head 360° rotatable w/30° tube inclination
  • 10X WideField eyepiece
  • Brightfield, darkfield or phase contrast achromatic and plan achromatic objectives
  • Mechanical 160 x 140 mm rectangular stage
  • Double course/fine focusing
  • Stain-resistant enamel finish
Part Number: 1333PHi
Attribute nameAttribute value

Specifications

Model :1333PHi
Head :Trinocular
Objective Magnification :4X, 10X, 40X, 100X
Objective Type :Brightfield / Darkfield / Phase Contrast Plan Achromatic
Dimensions LxWxH :370 x 190 x 400 mm
Weight :6.0 kg
Power :110 V
