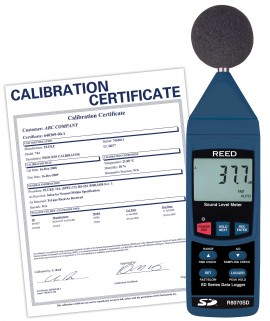

Reed R8070SD Data Logging Sound Level Meter

Reed R8070SD Data Logging Sound Level Meter has triple range measurement and features Data hold, Max/Min functions, and an easy-to-read backlit LCD display. Using a SD card (max 16GB), a user can manually record up to 99 readings or automatically by selecting a desired sampling rate from 1 to 3600 seconds. Quickly generate an Excel file with raw data, all without the use of software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring.

  • High accuracy of ±1.0dB to 1kHz meets Type 2 standards
  • Triple range measurement (50dB dynamic range)
  • A & C frequency weighting
  • Fast & Slow time weighting
  • Real-time data logger with integrated SD memory card
  • User selectable sampling rate from 1 to 3600 seconds
  • Peak hold, Data hold and Min/Max hold
  • Easy-to-read backlit LCD display
  • Tripod mount for long-term monitoring
  • Low battery indicator and auto shut off
  • The single AC output jack (3.5mm stereo mini-plug) provides analog signals to frequency analysers, level recorders, FFT analysers, graphic recorders, etc.
  • Includes Windshield ball, soft carrying case and batteries
Part number: R8070SD
$429.00
Attribute nameAttribute value

Specifications

Range :30 to 130 dB; Low: 30 to 80 dB; Med: 50 to 100 dB; High: 80 to 130 dB; Full: 30 to 130 dB
Dynamic Range :50 dB (in each range)
Resolution :0.1 dB
Accuracy :31.5 Hz ±3.0 dB, 63 Hz ±2.0 dB, 125 Hz ±1.5 dB, 250 Hz ±1.5 dB, 500 Hz ±1.5 dB, 1 kHz ±1.0 dB, 2 kHz ±2.0 dB, 4 kHz ±3.0 dB, 8 kHz ±5.0 dB
Frequency Range :31.5 Hz to 8 kHz
Frequency Weighting :A, C
Time Weighting :Fast/Slow (125 ms and 1 s)
Dimensions :9.7" x 2.7" x 1.8" (245 x 68 x 45 mm)
Weight :11.3 oz (320 g)
