Benchmark Scientific BioClave™ Research Autoclaves - B4000-28-120

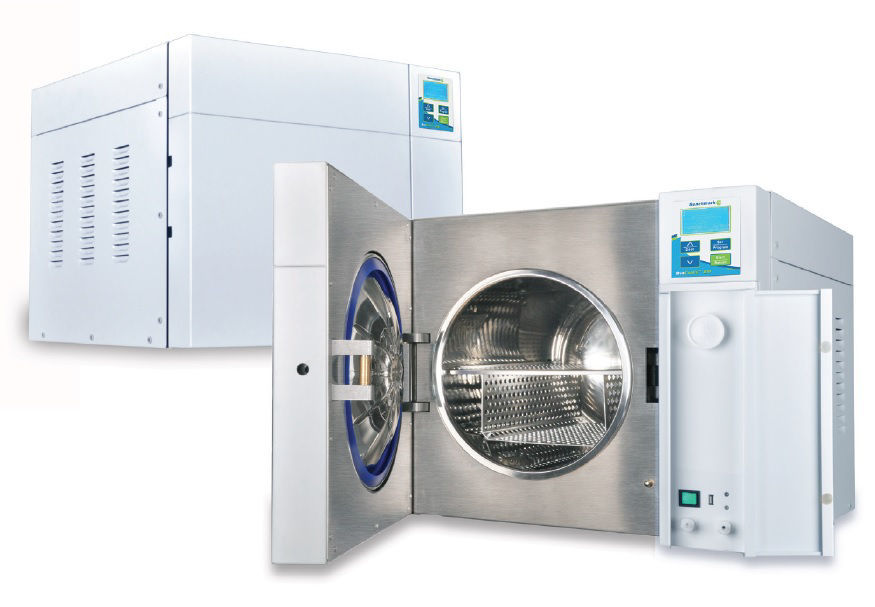

Despite the space-saving exterior dimensions of the BioClaves, the stainless steel chambers are surprisingly large, accommodating a variety of liquids, media, instruments, glassware, plasticware and other common research laboratory items. Available in 8L, 18L and 28L chamber volumes, these benchtop models include a mechanical and electrical safety interlock that prevents the door from being opened until the pressure has reached zero PSI.

With a large digital LCD display and fully automatic operation, all segments of the cycle (fill, sterilize, exhaust and dry) commence and run to completion by simply pressing the start button. An optional thermal mini-printer is also available for providing a record of sterilization parameters and a USB drive can be used to record settings and transfer them to a PC.

  • Designed specifically for the sterilization of laboratory research tools
  • Fully automatic operation – just press start
  • Built in water tank – no external connection needed
  • 8L, 18L and 28L models
  • All models small enough for benchtop use

The 8L BioClave Mini is pre-programmed to meet basic sterilization needs. Temperature can be selected at either 121°C or 134°C, and the sterilization time is fully adjustable. The economical BioClave Mini is the ideal choice wherever benchtop sterilization is required and space is limited.

BioClave 18L and 28L Models offer pre-set cycle options (standard programs), for use with liquids, wrapped research instruments or unwrapped instruments/plasticware. An additional option “Dry Only” is also available for additional drying time to be added to the end of a cycle. For special applications, requiring variations in cycle parameters, all settings are fully adjustable.

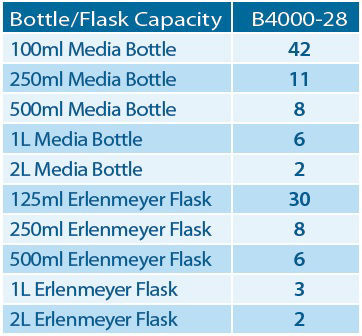

The Bioclave 28L features an increased chamber size with a diameter of 32cm. With this larger internal chamber, the BioClave 28 is our only model capable of sterilizing 1 and 2 liter flasks (and bottles). Despite the increased chamber size, the unit is still relatively compact, suitable for benchtop use.

Part number: B4000-28-120
Please Contact Us for a Quote
Attribute nameAttribute value

Specifications

Volume :28 L
Maximum Pressure :30.5 PSI (2 Bar)

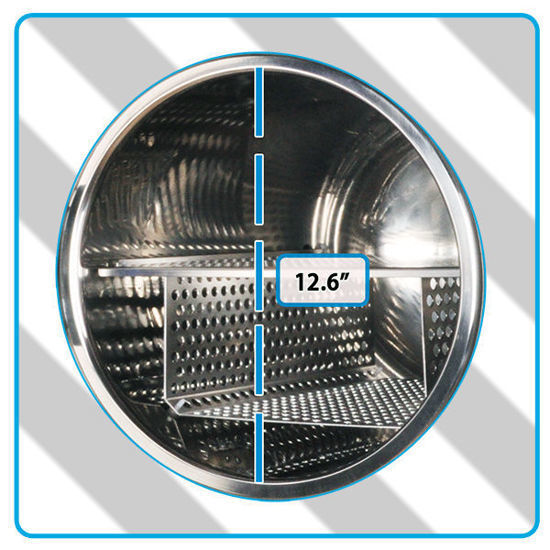

Chamber Dimensions OD x L :12.6" x 16.4" (32 x 41.5 cm)
External Dimensions LxWxH :25" x 25" x 22" (63.5 x 63.5 x 55.9 cm)
Weight :209 lbs (95 kg)
Power :120V/50-60Hz/1750W
