Caframo Overhead Stirrers - BDC6015

Caframo Overhead Stirrers are quiet, dependable, maintenance free and ideal for continuous use.

  • Included in each model: overhead stirrer motor, chuck, chuck guard, chuck key, support rod, power cord, manual in four languages (English, French, Spanish and German), calibration certificate and three year warranty.
  • Model BDC250 (Petite) also includes: integral clamp, stainless steel collet, stand, axial and radial mixing blades, and mixing shaft.

High Torque Models

Model BDC1850 : Caframo’s Ultra Torque 1850 lives up to its name, delivering high torque mixing action within the footprint of a bench top overhead stirrer. This model is a proven performer for cream and gel formulations, paint grinds, premixes, and small scale production batches. The TENV housing and quality construction are a match in industrial, food, and pharma manufacturing environments. You are guaranteed to get more power out of your Caframo stirrer.

Model BDC3030 : The perfect combination of higher torque and higher speed, Caframo’s Universal 3030 offers versatility to conquer the widest range of applications by a bench top stirrer. From larger batches of buffers and media to lotions and slurries, this stirrer will exceed your expectations. Ideal for workplaces with changing mixing needs as the business evolves, the 3030 will provide the most value for your overhead stirrer investment.

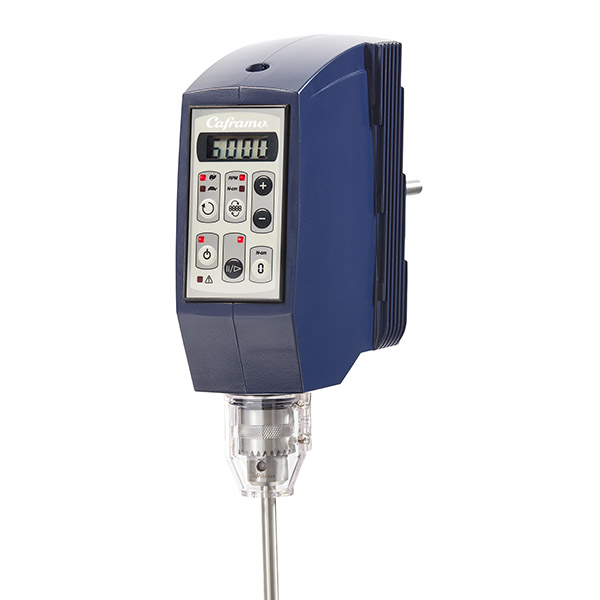

Model BDC6015 : Caframo’s Ultra Speed 6015 produces results in high speed applications, including emulsions, microencapsulations, low viscosity slurries and high shear dispersions of powders. Digital display and precision control of speed settings make repeatability of process easy. Safety features shut down the stirrer if there is overheating or torque overload, ensuring a long stirrer life. Operate with speeds up to 6000 rpm with peace of mind.

Low Torque Models

Model BDC2002 : Caframo’s BDC2002 offers ultimate versatility and maximizes productivity. With the push of a button, the unique Stirlight™ lights up so that solutions can be seen clearly. Engage the Auto Start feature to start or resume stirring automatically when power is supplied by control equipment or after a power outage

Model BDC2010 : Caframo has a history of great innovation in overhead stirrers. The BDC2010 stirrer is no exception and delivers 25% more power than the BDC2002 while keeping the same compact footprint, Stirlight™ and through shaft. The BDC2010 works smarter and allows the user complete mixing control. The stirring direction can be changed with the touch of the reversing button. The countdown timer times a stirring activity and beeps when completed. Engage the Auto Start feature to start or resume stirring automatically when power is supplied by control equipment or after a power outage. In xRx mode the stirrer is set up to continuously reverse from one direction to the other for a set length of time. (Picture the agitation mode of a top loading washing machine!)

Model BDC250 : The ultimate in compact design measuring only two by four inches. The BDC250 offers great capabilities in a small package; used in formulation, R&D, clinical research, education labs, anywhere a magnetic stirrer is used. It fits into small spaces and can be easily transported to other labs or classrooms. Engage the Auto Start feature to start or resume stirring automatically when power is supplied by control equipment or after a power outage. Everything you need assembled into a complete stirring package.

Part number: BDC6015
$2,170.00
Attribute nameAttribute value

Specifications

Type :Universal
Speed Range :40 to 6000 rpm
Capacity :25 L
Maximum Viscosity :20,000 mPas
Maximum Torque :170 Ncm
Weight :11 lbs / 5 kg
Power :120-220V/50-60Hz
