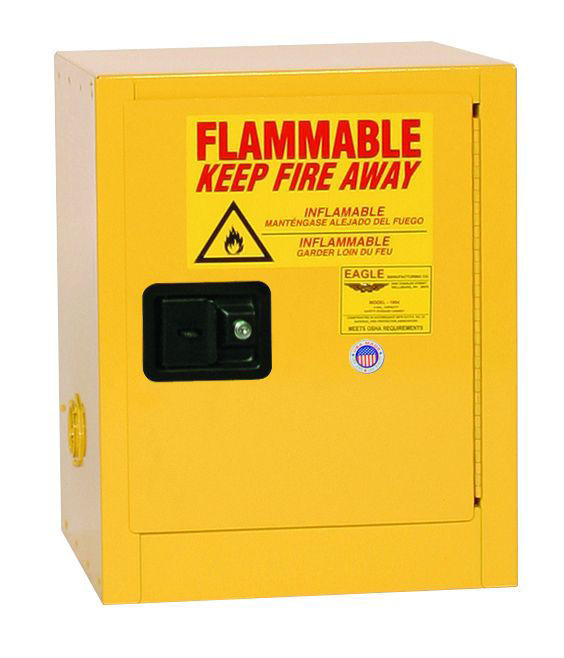

Eagle Manufacturing Flammable Liquid Safety Cabinets - 1903X

$1,031.90

Eagle Manufacturing Flammable Liquid Safety Cabinets are constructed of 18-gauge (1 mm) steel. The sides, top, bottom, and doors are double-walled with a 1½” (3.8 cm) air space between walls. Includes two vents, each have 2” (5.1 cm) threaded fittings and a fire baffle and cap. Cabinets have a high gloss powder coat finish with red trilingual warning, plus grounding attachment, 3-point latch system, and 2” (5.1 cm) raised, leakproof door sill. Each shelf is adjustable on 3” (7.6 cm) centers, supported by 4 brackets, with a 350 lbs (159 kg) safe allowable load. Cabinets meet NFPA Code 30 and OSHA requirements.

  • Reinforced double wall construction with 1½ (3.8 cm) air space on sides, top, bottom, back and doors
  • Constructed of 18-gauge steel
  • Lead-free, high-gloss, baked-on yellow powder finish
  • Continuous piano hinges
  • Ground connection
  • Four adjustable galvanized leveling legs
  • Trilingual warning labels
  • OSHA and NFPA compliant
  • 2” (5.1 cm) raised leakproof sill
  • Patented adjustable galvanized steel shelves direct spills to back and bottom of leakproof sump and hold 350 lbs (158.8 kg) Uniform Distributed Load (UDL)
  • Internal and external welded construction
  • Two 2” (5.1 cm) internal vents with fire baffle and cap
  • Flush mounted door handle with key lock
  • Three-point stainless steel bullet latching system
  • 3” (7.6 cm) centers for shelf brackets
  • Self-latching doors
Part Number: 1903X
Attribute nameAttribute value

Specifications

Capacity :4 Gallon
Number of Shelves :1
Door :Self-Closing
Internal Dimensions LxWxH :13.75" x 13.8" x 17.5" / 4.9 x 34.9 x 44.5 cm
External Dimensions LxWxH :17" x 17" x 22" / 43.2 x 43.2 x 55.9 cm
