Lamy First Plus Rotational Viscometer - N700009

$7,014.40

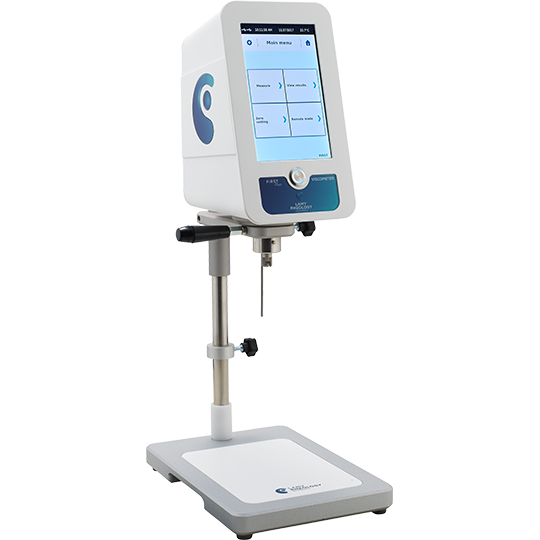

With its expanded programming possibilities and increased modularity, the First Plus will be the ideal tool for your application whether you use it alone or with its software.

  • Direct control of temperature with integrated Pt100 temperature probe (-50°C to 300°C)
  • 7’’ Touch screen displays viscosity (cP/Poises or mPa·s / Pa·s), speed, torque, time, shear rate, shear stress, temperature
  • Datalogging with RS-232 or USB transfer
  • Easy attachment of your spindle
  • Available in standard and high sensitivity versions
  • Direct measure with time to stop
  • User and locked mode
  • Torque gauge on display
  • Printer connection

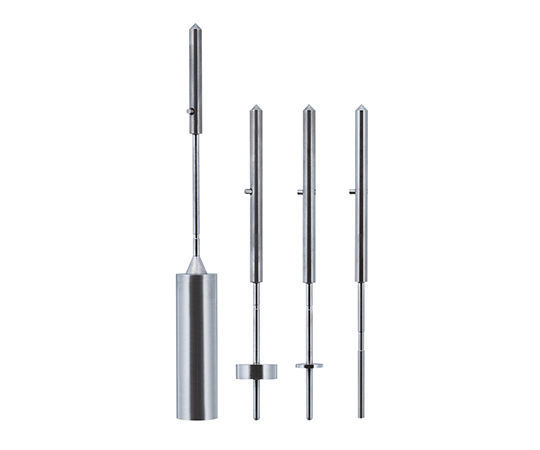

L-1 to L-4 and R-2 to R-7 measuring spindles are compatible with ASTM/ISO 2555 (316L stainless steel). These systems are ideally suited for simple viscosity measurement at controlled rotational speed in all areas of activity. The standard recommends use of 600ml beaker for measurement.

Part Number: N700009
Attribute nameAttribute value

Specifications

Viscosity Range :15 to 22M mPa·s
Spindles :L-1 to L-4

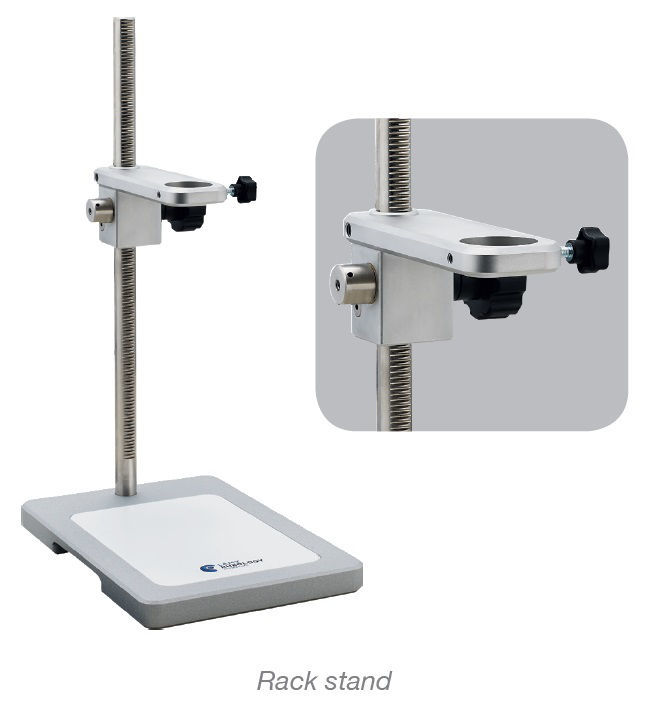

Stand :Rack
Rotation Rpeed :0.3 to 250 rpm
Torque Range :0.005 to 0.8 mNm
Accuracy :±1% full scale
Repeatability :±0.2%
Dimensions LxWxH :Head: 180 x 135 x 250 mm; Stand: 280 x 200 x 30 mm; Rod: 500 mmL
Weight :6.7 kg
