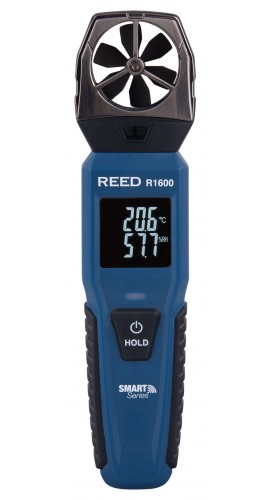

Reed R1600 Compact Bluetooth Vane Anemometer

The Reed R1600 Compact Bluetooth Vane Anemometer is a compact wireless vane anemometer that measures air velocity, air temperature, and relative humidity. The instrument can be used either stand-alone or with the REED Smart Series App (available for download on Android and iOS). When connected to the App, the R1600 can measure air volume flow and can be set up to data log measurements over a given period.

• Measures air velocity (m/s, ft/min, km/h, and mph), air temperature and humidity
• Easy to operate, designed for one-hand operation
• Integrated display provides flexibility for use without mobile device
• Magnetic backing allows instrument to be mounted to metallic surfaces
• Data Hold function
• Low battery indicator and auto shut-off
• Tripod mount for long-term monitoring

When used with the REED Smart Series App:

• Calculates air volume
• Real-time data logger
• User-selectable sampling rate from 1 to 120 seconds
• Bluetooth 5.0 provides connectivity to instruments up to 246' (75m) away
• Connect, measure and data log up to 6 instruments, simultaneously
• Easy setup with automatic app integration for compatible REED Smart Series instruments
• Export data via Excel or PDF and create custom reports that can be emailed from a mobile device

Air velocity

Range: 118 to 4921 fpm, 0.6 to 25 m/s, 2.1 to 90 km/h, 1,3 to 55.9 mph

Accuracy: fpm: ±(40fpm + 3.5%), m/s: ±(0.2m/s + 3.5%), km/h: ±(0.8km/h + 3.5%), mph: ±(0.5mph + 3.5%)

Resolution: 1 fpm, 0.1 m/s, 0.1 km/h, 0.1 mph

Temperature

Range: -4 to 140°F (-20 to 60°C)

Accuracy: -20 to 0°C (-4 to 32°F): ±0.8°C (1.6°F), 0 to 60°C (32 to 140°F): ±0.5°C (1°F)

Resolution: 0.1°C/°F

Dimensions (L x W xH): 6.9 x 1.5 x 1" (175 x 38 x 25mm)

Weight: 3.8 oz (108 g)
