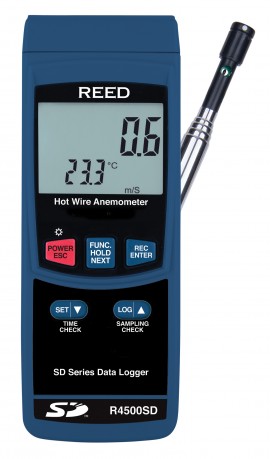

Reed R4500SD Data Logging Hot Wire Thermo-Anemometer

The Reed R4500SD Data Logging Hot Wire Thermo-Anemometer measures air velocity, air temperature and has a built-in contact thermometer. Featuring automatic temperature compensation, Data hold, Max/Min functions, and an easy-to-read backlit LCD display. Using a SD card (max 16GB), a user can manually record up to 99 readings or automatically by selecting a desired sampling rate from 1 to 3600 seconds. Quickly generate an Excel file with raw data, all without the use of software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring.

• Measures air velocity (fpm, m/s, kph, mph and knots) and air temperature
• Contact temperature measurement with type J/K thermocouple option
• Thermistor sensor for fast air temperature readings
• Hot wire probe for precise low air velocity measurements
• Real-time data logger with integrated SD memory card
• User selectable sampling rate from 1 to 3600 seconds
• Easy-to-read backlit LCD display
• Data hold and Min/Max functions
• Tripod mount for long-term monitoring
• Low battery indicator and auto shut off

Air Velocity

• Range: 40 to 4921 fpm, 0.2 to 25 m/s, 0.7 to 90 km/h, 0.5 to 55.9 mph, 0.4 to 48.6 knots
• Accuracy: ±(5% rdg + 20 fpm, 0.2 m/s, 0.3 km/h, 0.2 mph, 0.2 knot)
• Resolution: fpm: 1m/s, km/h, mph; knot: 0.1

Temperature

• Range
  • Air: 0 to 50°C (32 to 122°F)
  • Type K: -100.0 to 1300°C (-148.0 to 2372.0°F)
  • Type J: -100.0 to 1200°C (-148.0 to 2192.0°F)
• Accuracy
  • Air: ±0.8°C (1.5°F)
  • Thermocouple: ≥-58°F (-50°C) ±(0.4% + 1°F (0.5°C)), ≤-58°F (-50°C) ±(0.4% + 1.8°F (1°C))
• Resolution: 0.1°F/°C

Dimensions (L x W x H): 8 x 3 x 1.5" (203 x 76 x 38mm)

Weight: 1.13 lb (515 g)
