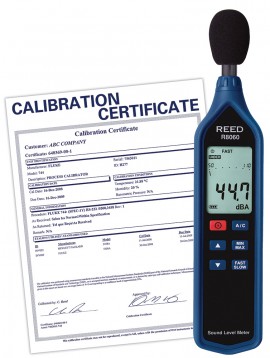

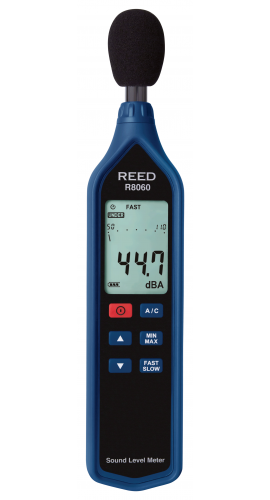

Picture of Reed R8060 Sound Level Meter with Bargraph
Picture of Reed R8060 Sound Level Meter with Bargraph Picture of Reed R8060 Sound Level Meter with Bargraph

Reed R8060 Sound Level Meter with Bargraph

The Reed R8060 Sound Level Meter with Bargraph meets IEC Type 2 requirements and offers high accuracy for critical measurements. The R8060 features over/under range indicators for each of the 3 measurement ranges, a digital analog bargraph and the ability to keep track of Min/Max readings.

  • High accuracy of ±1.4 dB meets Type 2 standards
  • Triple range measurement (60dB dynamic range)
  • A & C frequency weighting
  • Fast & Slow time weighting
  • Easy-to-read LCD display
  • Digital analog bargraph
  • 0.5" (12.7mm) electret condenser microphone
  • Data hold and Min/Max hold
  • AC/DC output signal for use with dataloggers
  • Tripod mount for long-term monitoring
  • Low battery indicator and auto shut off
  • Includes microphone windshield ball, battery and carrying case
Part number: R8060
$259.00
Attribute nameAttribute value

Specifications

Range :Low: 30 to 90 dB; Med: 50 to 110 dB; High: 70 to 130 dB
Dynamic Range :60 dB (in each range)
Resolution :Digital: 0.1 dB; Analog: 2 dB
Accuracy :±1.4 dB
Frequency Range :20 Hz to 8 kHz
Frequency Weighting :A, C
Time Weighting :Fast/Slow (125 ms and 1 s)
Dimensions :10.2" x 2.2" x 1" (258 x 55 x 25 mm)
Weight :6.5 oz (185 g)
