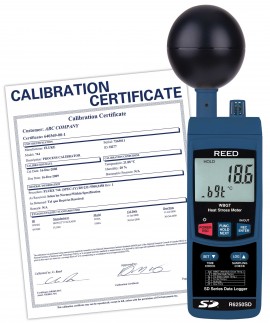

Reed R6250SD Data Logging Heat Stress Meter

The Reed R6250SD Data Logging Heat Stress Meter measures temperature, humidity, and direct or radiant sunlight with Wet Bulb Globe Temperature (WBGT). With this information it determines the "What it feels like" temperature. The R6250SD is OSHA recommended with a user adjustable WBGT audible alarm and the ability to adjust settings for indoor temperature measurement. Featuring, Data hold, Max/Min functions, and an easy-to-read backlit LCD display. Using a SD card (max 16GB), a user can manually record up to 99 readings or automatically by selecting a desired sampling rate from 1 to 3600 seconds. Quickly generate an Excel file with raw data, all without the use of software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring.

  • Measures temperature, humidity, dew point, wet bulb, black globe, indoor/outdoor WBGT
  • Wet Bulb Globe Temperature (WBGT) considers the effects of temperature, humidity and direct or radiant sunlight
  • In/Out function displays the WBGT value with or without direct sun exposure
  • Black Globe Temperature (TG) monitors the effects of direct solar radiation on an exposed surface
  • Adjustable audible alarm
  • User selectable unit of measure (°F or °C)
  • Data hold and Max/Min functions
  • Real-time data logger with integrated SD memory card
  • User selectable sampling rate from 1 to 3600 seconds
  • Easy-to-read backlit LCD display
  • Tripod mount for long-term monitoring
  • Low battery indicator and auto shut off
  • Includes soft carrying case and batteries
Part number: R6250SD
$529.00
Attribute nameAttribute value

Specifications

Temperature Range :Air: 0 to 50.0°C (32 to 122.0°F); Dew Point: -25.3 to 48.9°C (-13.5 to 120.1°F); Wet Bulb: -21.6 to 50°C (-6.9 to 122.0°F); Black Globe: 0 to 80°C (32 to 176°F); Indoor WBGT: 0 to 59°C (32 to 138°F); Outdoor WBGT: 0 to 56°C (32 to 132°F)
Temperature Resolution :0.1°C/°F
Temperature Accuracy :Air: ±0.8°C (±1.5°F); Black Globe: ±0.6°C (±1.1°F); Indoor WBGT: ±1.5°C (±2.7°F); Outdoor WBGT: ±2°C (±3.6°F)
Humidity Range :5 to 95% RH
Humidity Resolution :0.1% RH
Humidity Accuracy :>70% RH: ±(3% reading + 1% RH); <70% RH: ±3% RH
Dimensions :Instrument: 177 x 68 x 45 mm (7.0" x 2.7" x 1.8"); Black Brass Ball Diameter: 75 mm (2.9")
Weight :515 g (1.1 lb)
