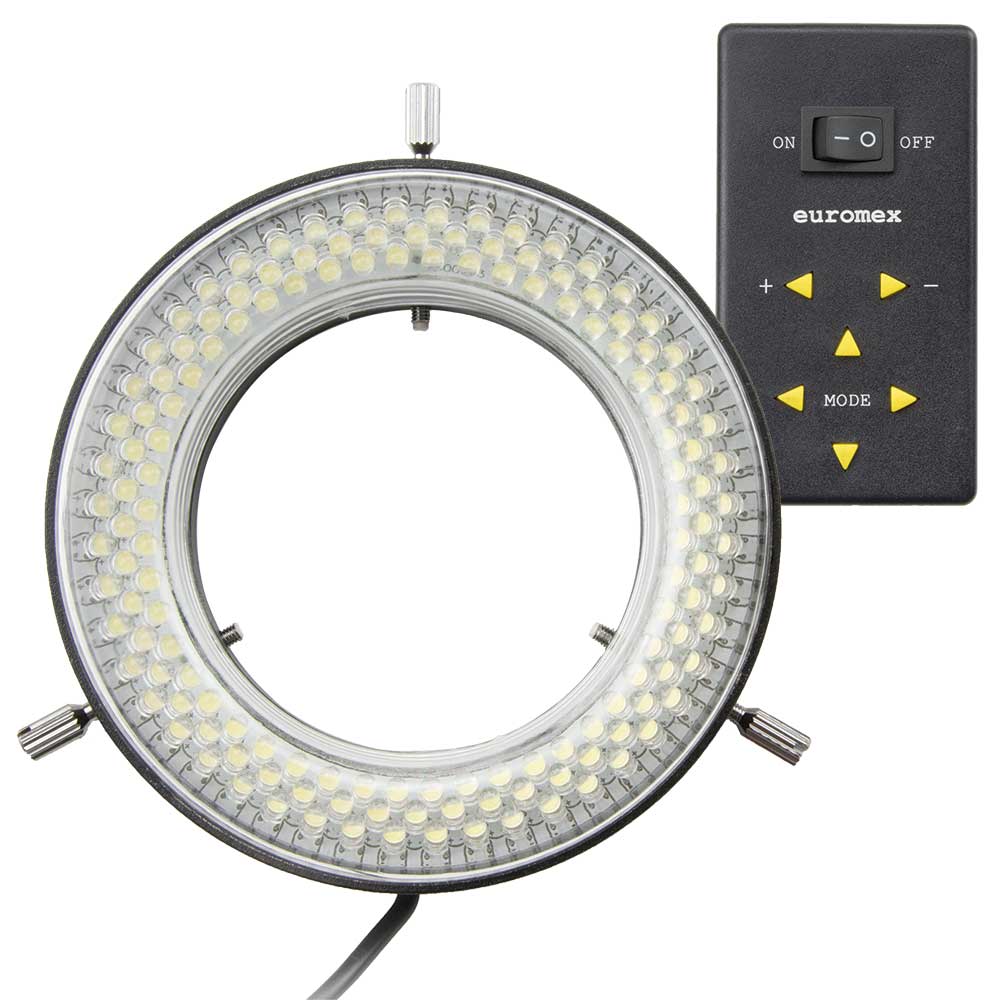

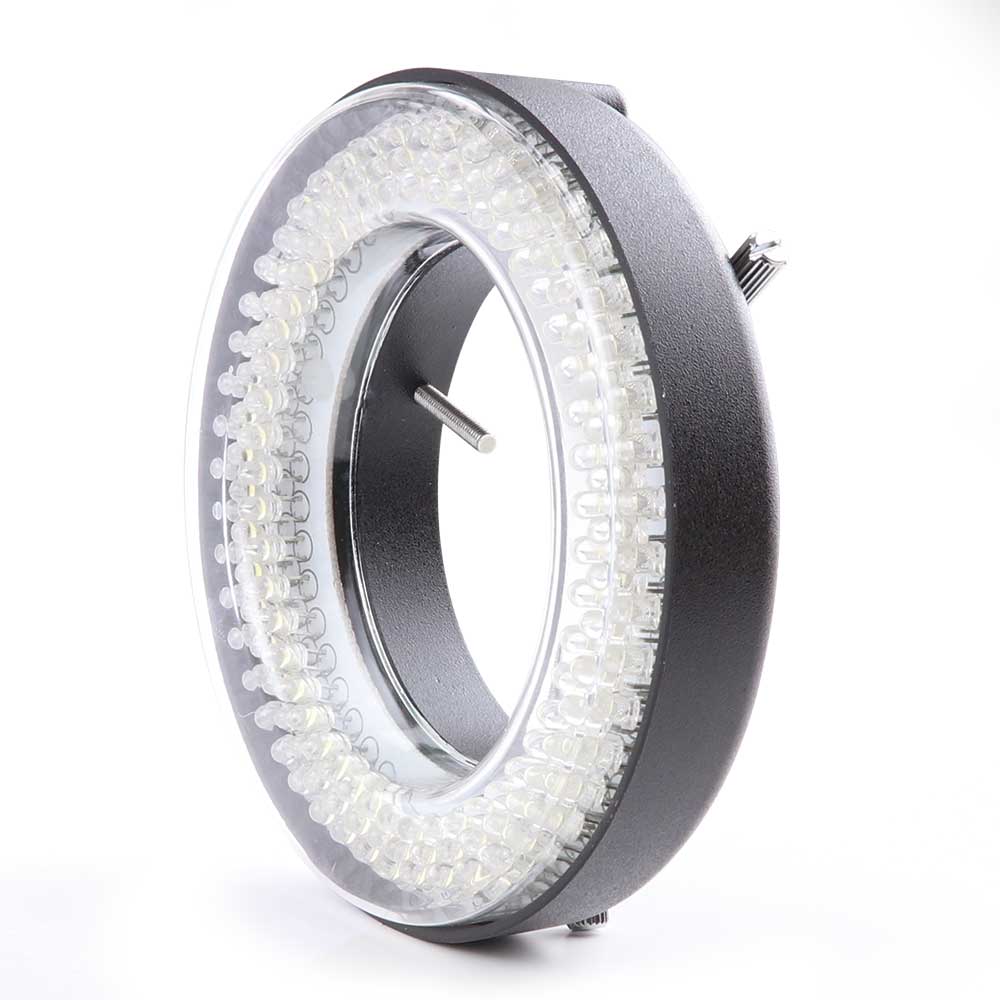

Euromex LED Ring Illuminator

The Euromex LED Ring Illuminator produces intense white light for long microscopy observation sessions. The 144 LED ring light has high illuminance and segment illumination, making it suitable for all kinds of demanding applications. The ring consists of 4 individual lightning zones that can be turned on and off independently. The lighting directions can also be changed to obtain the best illumination for your application. With variable intensity control, it provides cool, even, intense and focused shadow-free illumination. The LED Ring Illuminator is an ideal durable cool light source for all stereo microscopes, especially for gemological, coin and gem/jewelry microscopes.

  • 144 bright white LED bulbs with adjustable intensity
  • 4 Segment illumination
  • 55-200mm working distance
  • Lighting direction changeable
  • Color temperature 6,500K
  • Illuminance 23,000 Lux at 100mm
  • Intense and focused shadow-free illumination
  • Long life and low energy consumption
  • Including mounting ring
  • Remote control included
  • 1 year warranty
Part number: ELE-1973
Attribute nameAttribute value


Color Temperature :6,500 K
Illuminance :23,000 Lux at 100mm distance
Illumination :144 LEDs with adjustable intensity and 4 segment selection
Working Distance :55 to 200 mm
Mounting Diameter :25 to 61 mm (for stereo microscopes)
Diameter :100 mm OD
Power :100-240VAC/12VDC (50/60 Hz)
