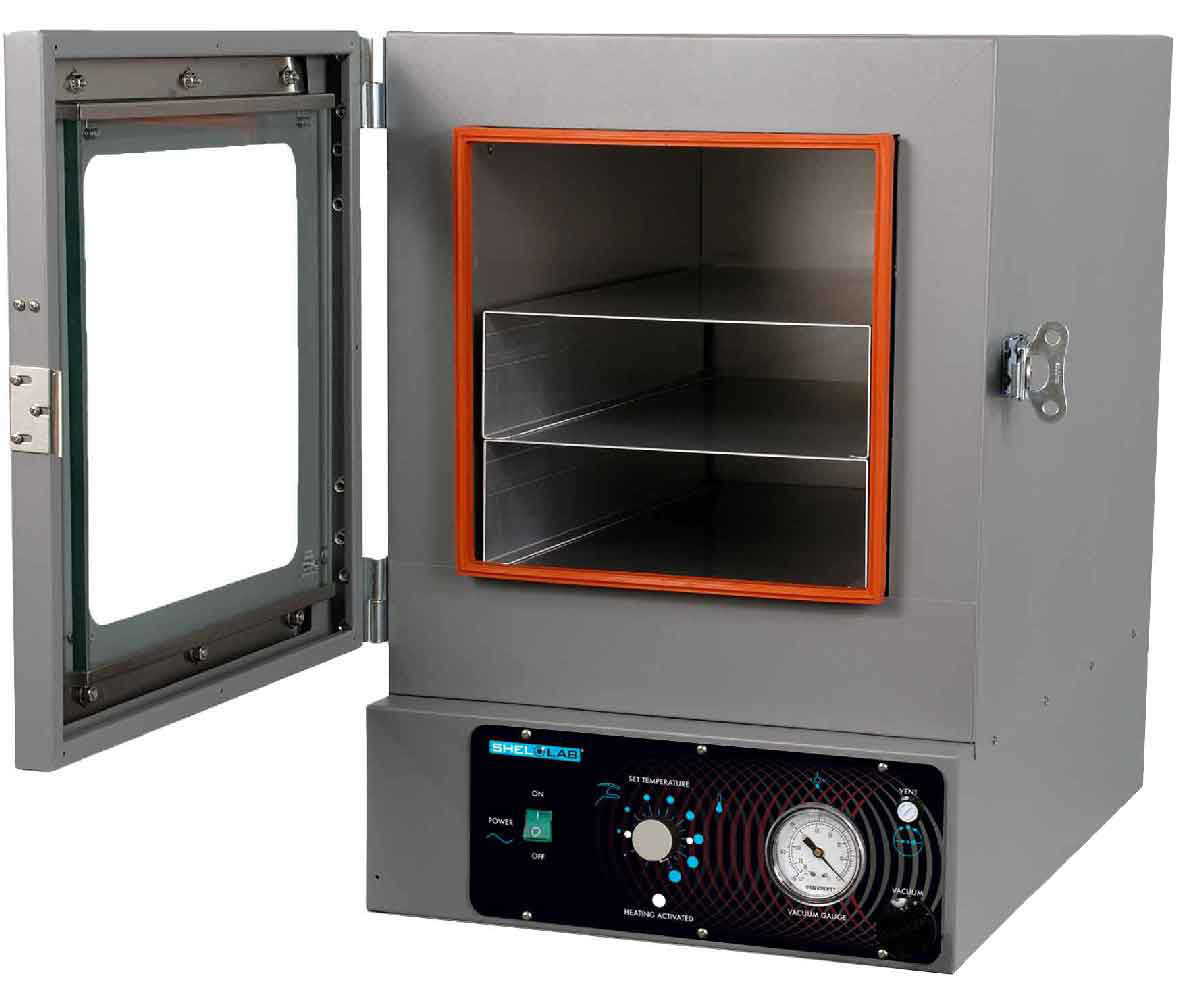

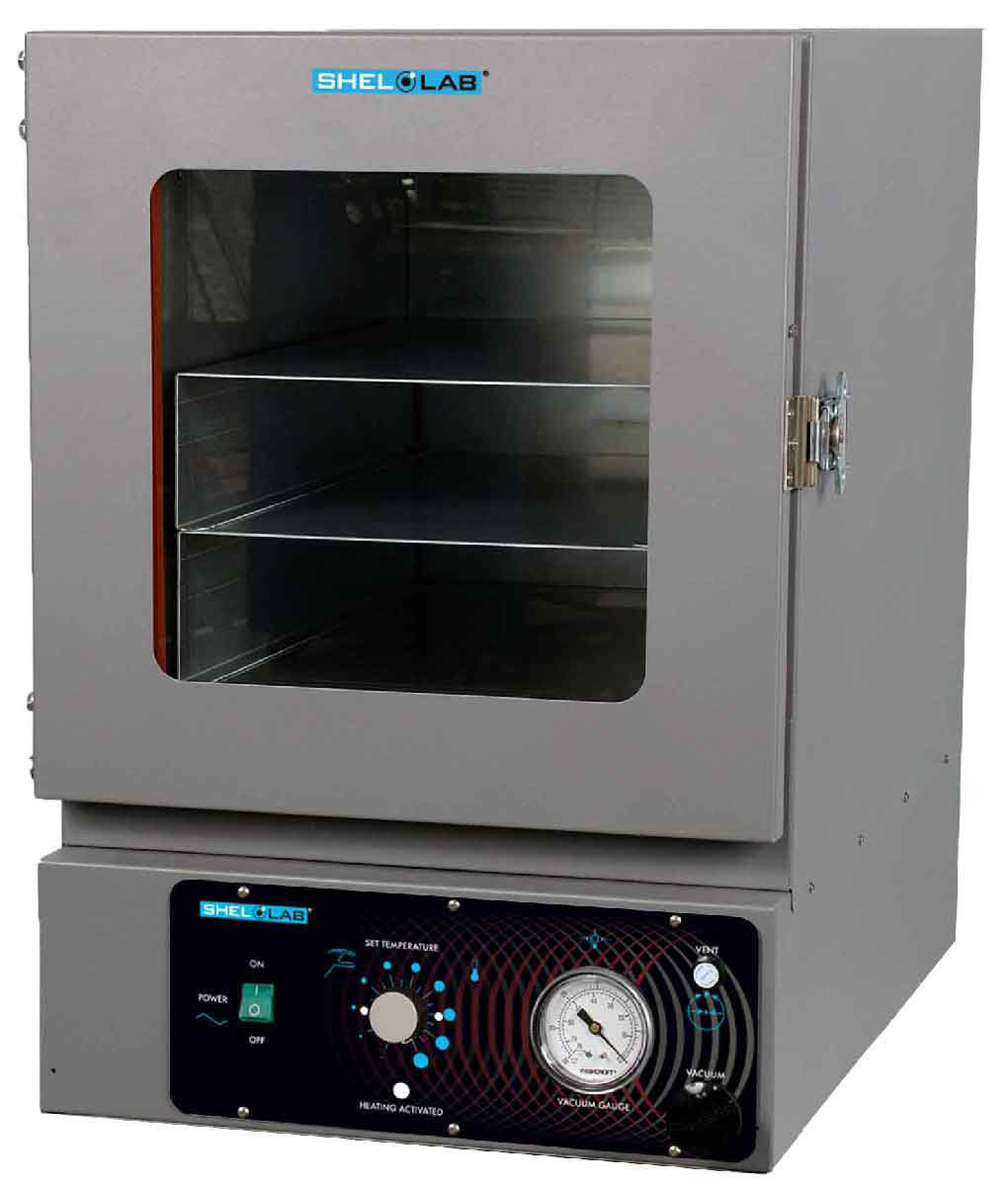

Shel Lab SVACE Series Economy Vacuum Ovens - SVAC2E


Shel Lab SVACE Economy Vacuum Ovens provide exceptional capabilities for fast and gentle drying of heat sensitive materials. They prevent residue accumulation on products and also allow safe drying of flammable solvents.

These units feature a radiant heating system that optimizes chamber space and provides excellent heat transfer and temperature uniformity. All Shel Lab vacuum ovens are built with stainless steel chambers that are easy to clean and have exceptional durability.

The doors have positive latch handles with spring-loaded glass to facilitate a good vacuum seal without hinge binds that shorten the gasket life. The tempered glass viewing window allows for safe, continuous monitoring of samples. A selection of gaskets (for specific applications) and a small bench top footprint increase the versatility of these ovens.

The Shel Lab SVACE Economy Vacuum Ovens are equipped with silicone gaskets. While these gaskets resist a wide variety of temperatures and pressures, they can breakdown in the presence of solvents and acids. For solvent applications, we recommend using Buna gaskets. For acidic applications, we recommend using Fluorosilicone or Viton® gaskets.

Part Number: SVAC2E
Attribute nameAttribute value


Model :SVAC2E
Capacity :1.67 Cubic Feet / 47.2 L
Internal Dimensions LxWxH :12" × 20" × 12" / 304 mm × 508 mm × 304 mm)
External Dimensions LxWxH :18.5" × 27.8" × 25.3" / 470 mm × 705 mm × 641 mm
Temperature Range :Ambient +15°C to 210°C
Temperature Uniformity :9.0°C @ 120°C
Temperature Stability :0.5°C @ 120°C
Vacuum Range :-3.0 to -29.9 "Hg / -10 to -101 kPa / -101 to -1010 mbar
Weight :59.4 lbs / 27 kg
Power :110-120V/50-60Hz/10.0A
