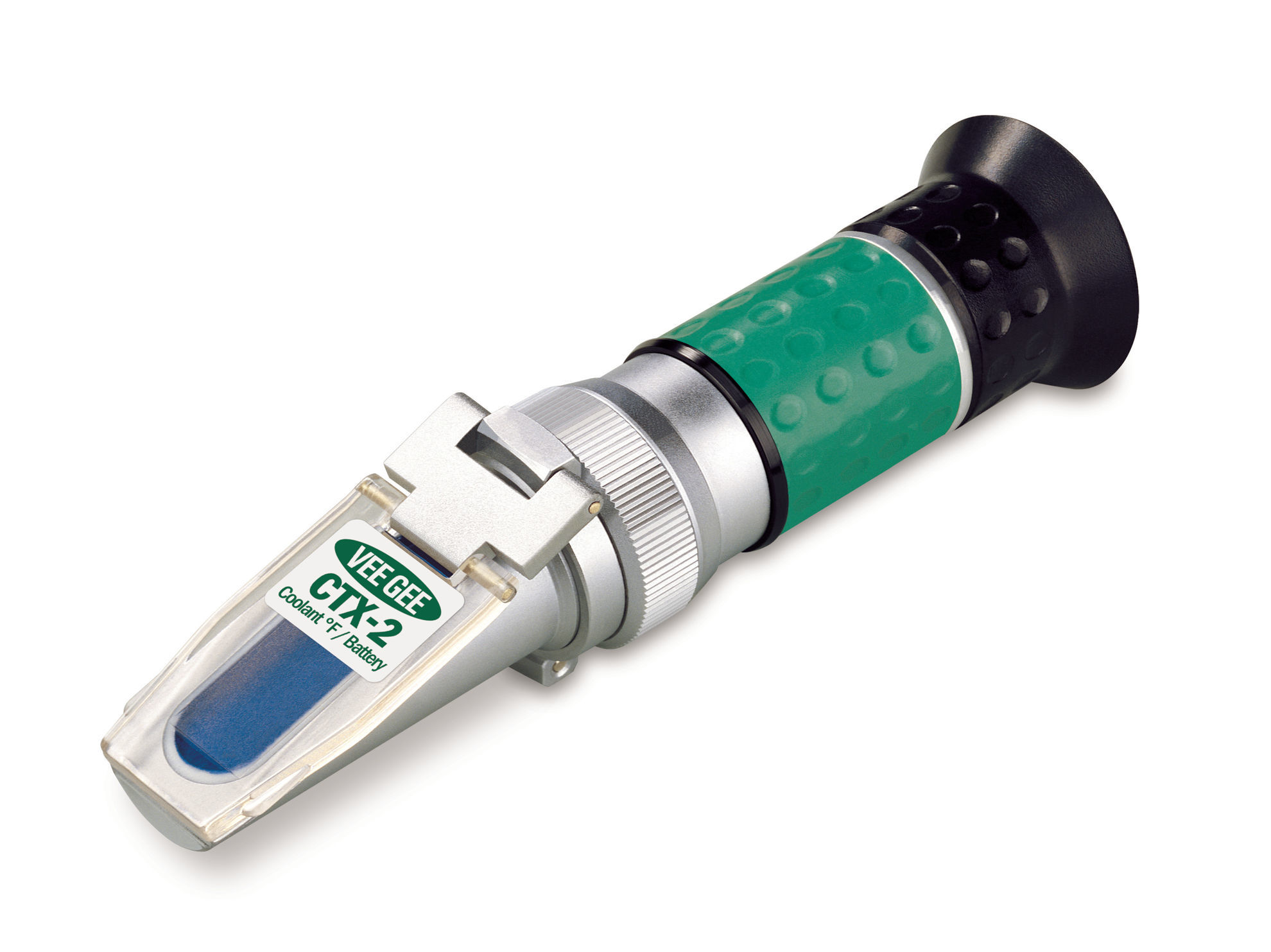

VeeGee Scientific X Series Handheld Analog Coolant/Battery Acid Refractometers - 43064

The VeeGee Scientific X Series Handheld Analog Refractive Index Refractometer is exceptionally simple to operate and provides quick, accurate measurements for the concentration of nearly any aqueous solution.

  • Largest & sharpest display scale available
  • High-quality optical glass material ensures consistently accurate readings
  • Durable, industrial grade design
  • Automatic Temperature Compensation (ATC)
  • One year warranty

Operation consists of placing 1 or 2 drops of sample on the prism, closing the daylight plate over the sample, then looking through the focusable, cushioned-rubber eyepiece for the readings. This model features the largest, easiest-to-ready scale available for clear, sharp figures, screen shading, and incredible contrast. All units feature rubber grips on the body, which block the transmission of hand heat to reduce temperature errors.

Models with ATC need to be calibrated in a controlled environment due to the built-in temperature element.

The prism is mounted in an all-metal housing which allows the sample and prism to reach temperature equilibrium quickly. Also feature non-roll stands to ensure that once the units are paced on a table or bench top, they won’t be prone to roll off the surface.

Part number: 43064
$213.07
Attribute nameAttribute value

Specifications

Model :CTX-2
Range :Freezing Point PG: -50 to 32°F; Freezing Point EG: -60 to 32°F; Specific Gravity BA: 1.10-1.40
Resolution :Freezing Point PG: 2°F; Freezing Point EG: 2°F; Specific Gravity BA: 0.01
Accuracy :Freezing Point PG: ±2°F; Freezing Point EG: ±2°F; Specific Gravity BA: ±0.01
Dimensions LxWxH :150 x 40 x 40 mm
Weight :235 g
