  • New Era NE-500 Series OEM Programmable Single Syringe Pumps - NE-501L

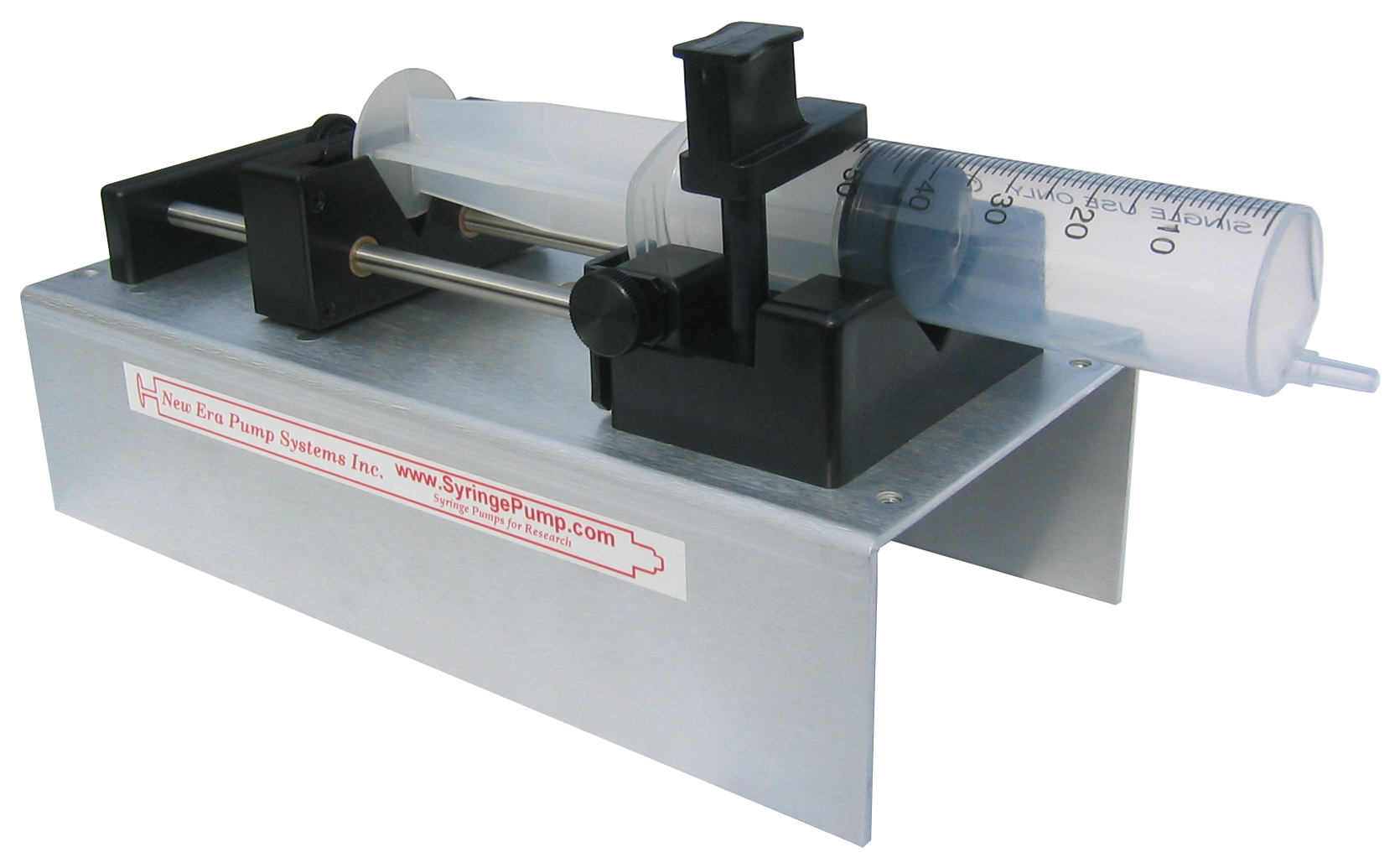

Picture of New Era NE-500 Series OEM Programmable Single Syringe Pumps - NE-501L

New Era NE-500 Series OEM Programmable Single Syringe Pumps - NE-501L

The New Era NE-500 Series OEM Programmable Single Syringe Pumps are available in High Pressure, Stall Detection and Long Chassis options.

  • Computer controllable: networkable up to 100 pumps
  • Stand-alone operation: pre-program the pump with a dispensing program, then operate the pump from an attached Foot Switch, button, or I/O controller
  • One-click program upload from "Pumping Program Generator" spreadsheet
  • Add the OEM Starter Kit to run as a fully functional, stand-alone pump
  • Does not have a built-in user interface
  • Chassis mountable: 9 1/2"L x 4"W x 4 1/8"H (24.13 x 10.16 x 10.5 cm)
  • If chassis does not fit in your system, we make custom designed OEM syringe pumps to accommodate your specific needs
  • Operates from a 12V DC power source
  • Includes all the advanced functions and programming features of the NE-1000 Series
  • Disposable, Glass, Stainless Steel Syringes and Plumbing Supplies are sold separately
  • Does not come with a power supply



Part number: NE-501L
$909.65
Attribute nameAttribute value

Specifications

Type :Standard
Stall Detection :Yes
Capacity :1 x Syringe (up to 140 ml)
Syringe ID :0.100 to 50.00 mm
Speed :0.004204478 cm/hr to 5.100464828 cm/min
Pumping Rate :0.727 µL/hr (1 ml syringe) to 3470 ml/hr (140 ml syringe)
Maximum Force :45 lbs @ min speed, 18 lbs @ max speed
Dimensions LxWxH :10⅜" x 4" x 4⅛" (26.35 x 10.16 x 10.48 cm)
