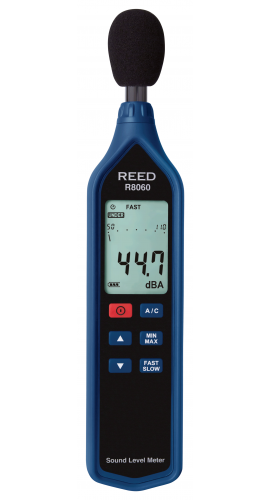

Reed R8060 Sound Level Meter with Bargraph - R8060

The Reed R8060 Sound Level Meter with Bargraph meets IEC Type 2 requirements and offers high accuracy for critical measurements. The R8060 features over/under range indicators for each of the 3 measurement ranges, a digital analog bargraph and the ability to keep track of Min/Max readings.

• High accuracy of ±1.4 dB meets Type 2 standards
• Triple range measurement (60dB dynamic range)
• A & C frequency weighting
• Fast & Slow time weighting
• Easy-to-read LCD display
• Digital analog bargraph
• 0.5" (12.7mm) electret condenser microphone
• Data hold and Min/Max hold
• AC/DC output signal for use with dataloggers
• Tripod mount for long-term monitoring
• Low battery indicator and auto shut off
• Includes microphone windshield ball, battery and carrying case

Range: Low: 30 to 90 dB; Med: 50 to 110 dB; High: 70 to 130 dB

Resolution: Digital: 0.1 dB; Analog: 2 dB

Frequency Range: 20 Hz to 8 kHz

Dimensions: 10.2" x 2.2" x 1" (258 x 55 x 25 mm)

Weight: 6.5 oz (185 g)
